Folwer-Sylvac 17.5″/450mm Hi_CAL Electronic Height Gage 54-931-450-0

Solicita Cotización
Categorías: ,

Descripción

• Measuring ranges: 6″/150mm, 12″/300mm and 17.5″/450mm
• Error Max µm: 2.5 + L / 175mm

• Extra low measuring force, from 0.2 N

• Measurement of internal and external diameters, centerlines, heights, widths, depths, surfaces.

• MIN, MAX, TIR capability

• Excellent repeatability thanks to the motorized carriage.

• Intuitive functions/minimizes key strokes

• Customizable with free software

• Great mobility

• High reliability

• Data output USB and RS232

• Battery life: 40 hours rechargeable during operation.

• Touch sensitive probe speed for easy operation.

• Base with small footprint.

• 4mm probe shank

Instrument Includes Protective Cover, Charging Set, Ruby Ball Probe Ø3mm, Setting gage and Calibration Certificate!

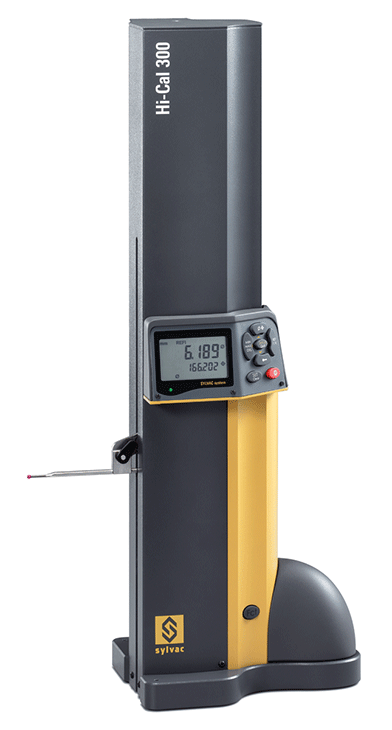

*Image shown for representational purposes only

Specifications

Range:  17.5″/450mm
Application Range:  18.5″/0-470mm
Maximum Error (µm): 2.5 + L/175
Repeatability:  2µm
Resolution:  0.00005″/0.001mm
Velocity (mm/sec.):  50/100
Measuring Force:  0.2 – 0.3 Newtons
Self-Contained Use:  Approximately 40 hours
Overall Height:  26.7″/679mm
Weight:  15 lb/6.8 kg
S_Connect:  USB/mini USB/RS-232

Programmable by PC
Zero setting
Min/max/delta
PRESET function
2 references
Height measurement, Ø and centerlines
2 types of progressive speed
